Getting Started

Whether you are a developer or an end-user, this page will help you get started with the peak-finder.

Installation

Install Conda

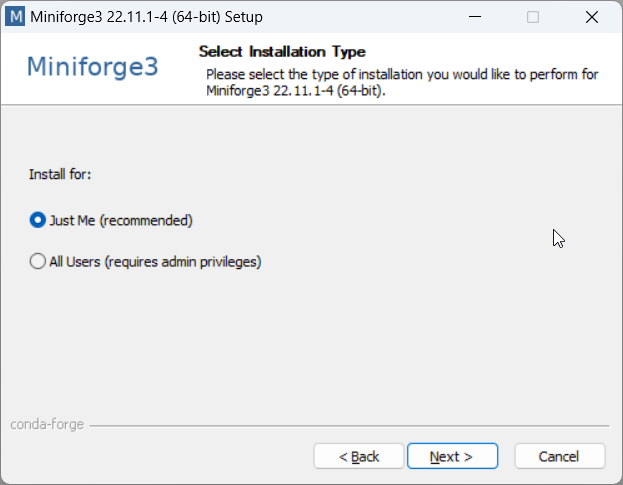

Install Conda for Python 3.10 or higher. Follow this link to download its Windows installer (~140 MB of disk space):

Miniforge (Windows x86_64)

_images/Miniforge3_Setup-1.png
_images/Miniforge3_Setup-3.png

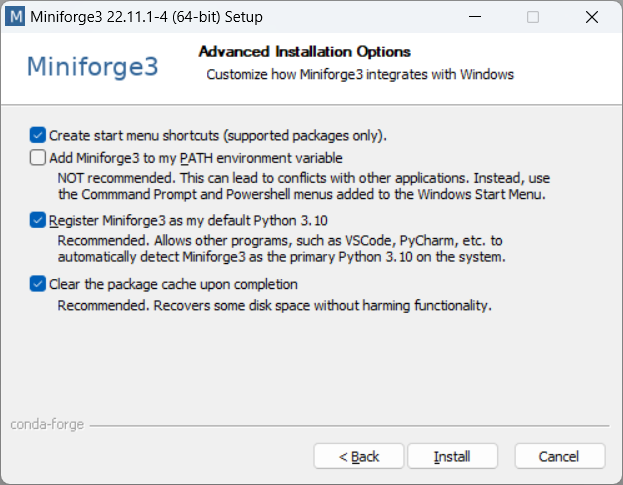

Registering the Conda distribution as the default Python 3.10 interpreter is optional. Preferably uncheck that box if you already have Python 3 installed on your system.

Note

We recommend installing Miniforge: beyond being smaller, it also installs packages from the conda-forge repository by default, which has no restriction for commercial use, while both Miniconda and Anaconda distributions use the Anaconda repository by default: see Anaconda Terms of Service for details. In any case, the installation of peak-finder forces the usage of the conda-forge repository, and is thus not affected by the Anaconda Terms of Service.

Download the latest peak-finder

Follow this link to download from the GitHub repository.

Extract the package to your drive (SSD if available)

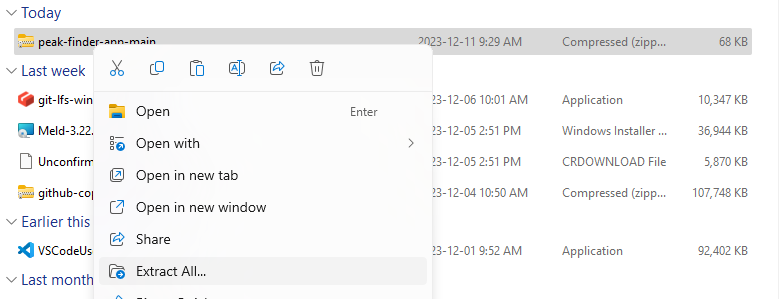

Extract the package to your drive, preferably an SSD if available.

_images/extract.png

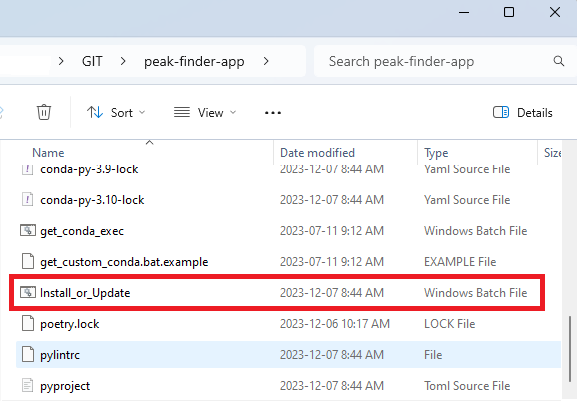

Run Install_or_Update.bat

The same batch file can be used to install or update peak-finder. A conda environment named peak-finder will be created to prevent conflicts with other software that may rely on Python.

_images/install_or_update.png

Note

The assumption is made that Conda has been installed in one of the default directories, depending on the distribution (miniforge3, mambaforge, miniconda3, anaconda3):

  • %LOCALAPPDATA%\

  • %USERPROFILE%\

  • %LOCALAPPDATA%\Continuum\

  • %PROGRAMDATA%\

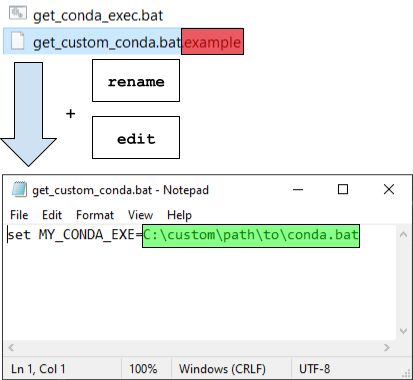

If Conda gets installed in a different directory, users will need to add/edit a get_custom_conda.bat file to add their custom path to the conda.bat file:

_images/Install_start_bat.png

Running the application

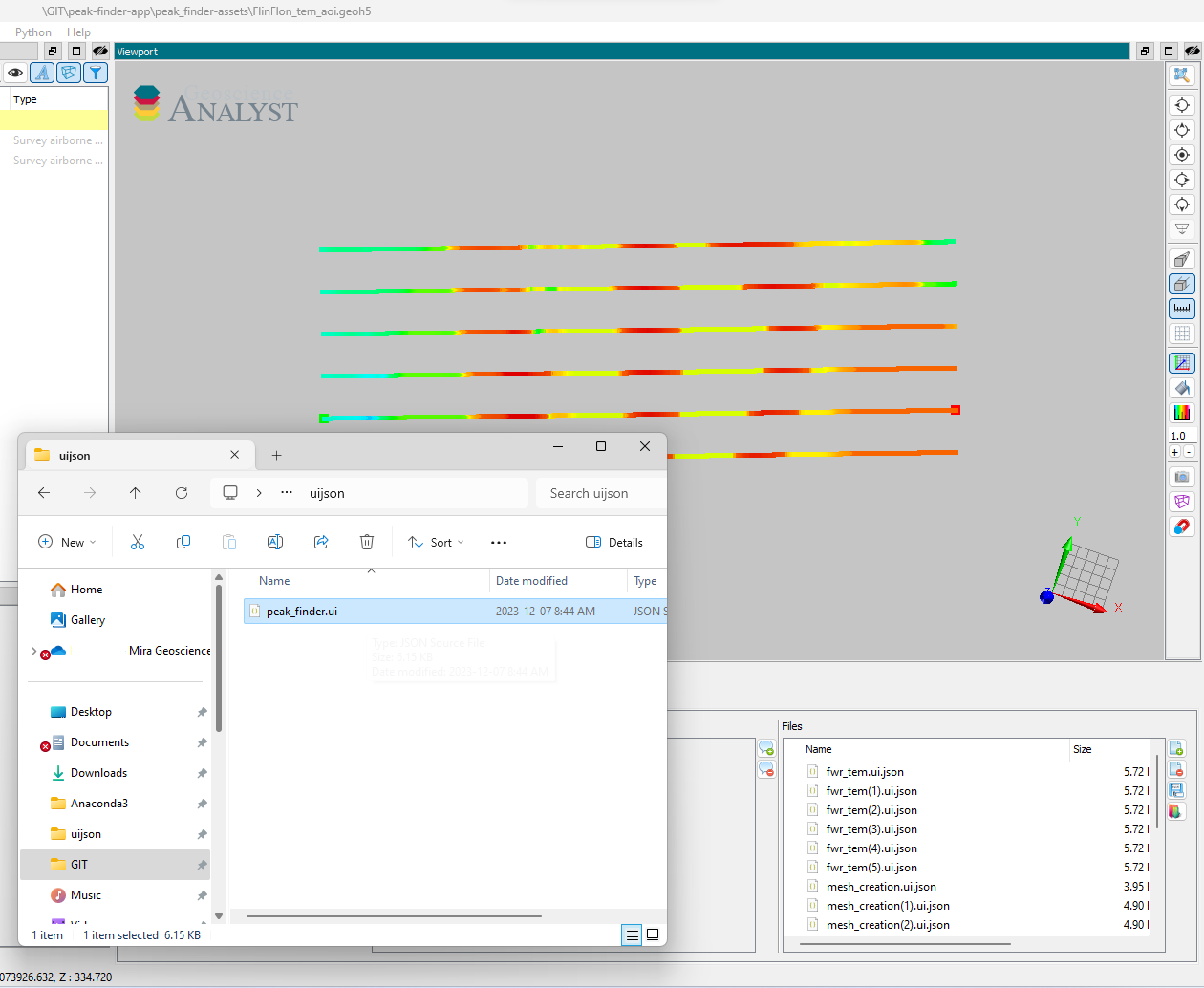

At this point, you will have all required packages to run the applications. Geoscience ANALYST pro users can run the application with a ui.json file by drag-and-drop:

_images/drag_and_drop.png

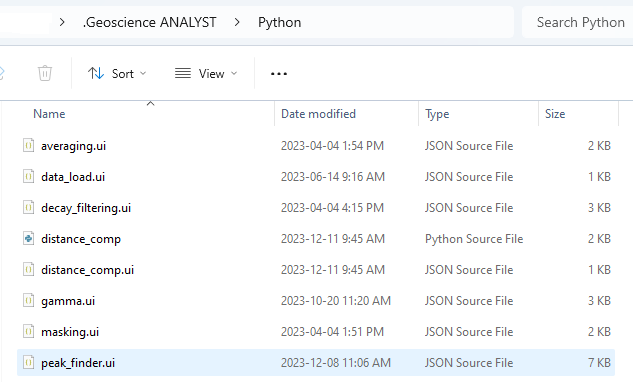

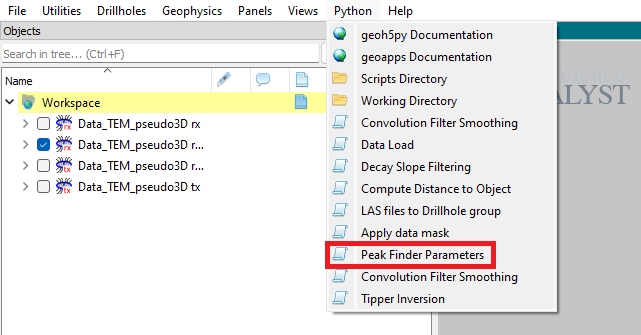

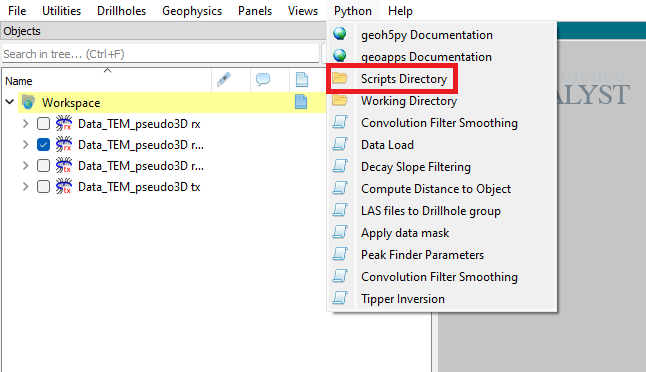

or by Python menu dropdown by placing a ui.json file in the Python scripts folder.

1.

_images/python_scripts_folder.png

2.

_images/python_menu_uijson.png

3.

_images/dropdown_scripts.png

Either operation will result in the rendering of a ui.json file within the Geoscience ANALYST viewport. To learn about the ui.json interface and how to run the application in one of two modes, proceed to the Basic Usage section.
